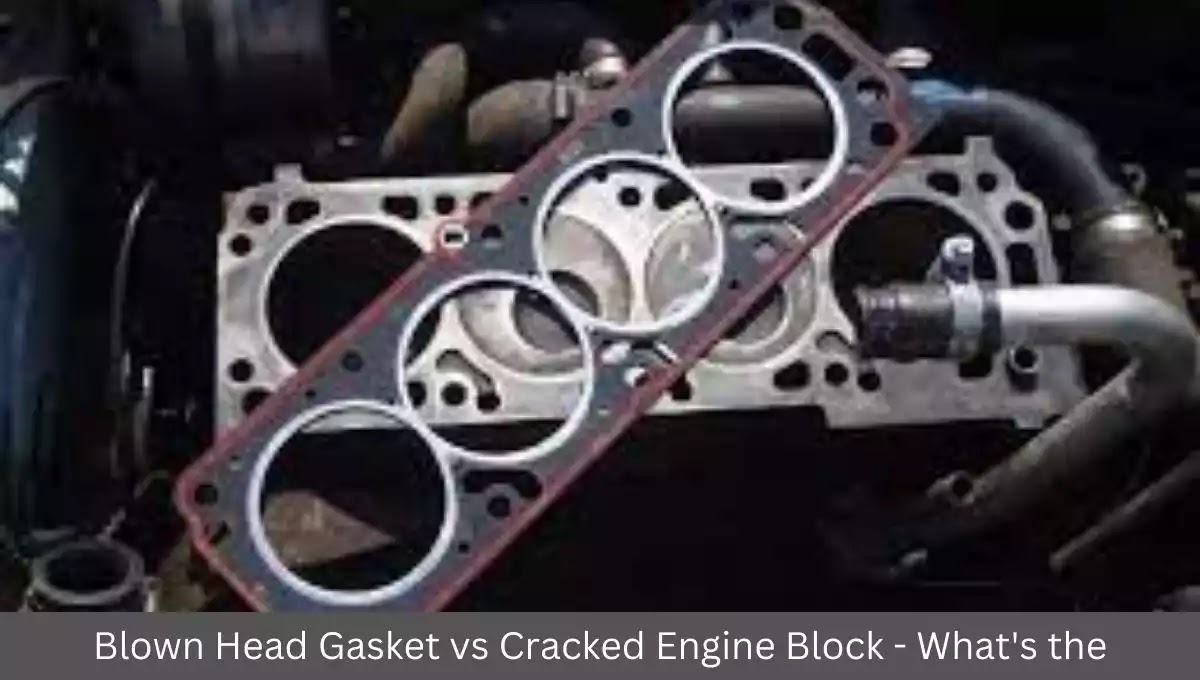

Blown Head Gasket vs Cracked Engine Block - What's the Difference?

Discover the contrast between blown head gaskets & cracked engine blocks. Learn to identify & fix these critical car issues. Expert insights here.

A blown head gasket and a cracked engine block are two of the most dreaded issues an engine can develop. Both can lead to major engine damage if not addressed promptly, but they originate from separate underlying causes.

Understanding how these failures differ is critical for identifying the problem and pursuing the proper repairs.

This guide examines the core contrasts between a blown head gasket and a cracked block.

Related Topics:

blown-head-gasket-vs-cracked-engine-block

What is a Head Gasket?

The head gasket is a crucial mechanical seal that sits between the engine block and cylinder head. Its job is to prevent combustion gases and coolant from leaking out of the cylinders.

Key functions of the head gasket:

  • Creates a tight seal around the cylinders to contain high pressures and temperatures during combustion
  • Separates the engine coolant passages from the cylinders
  • Seals oil galleries feeding the top end of the engine

Head gaskets are made from durable materials like multi-layer steel, copper, aluminum, and composite polymers. But over time they can fail for various reasons.

Signs of a Blown Head Gasket

A blown or leaking head gasket will exhibit some or all of these common symptoms:

  • White exhaust smoke - This is a telltale sign of coolant leaking into the combustion chambers and being burned along with the fuel. The steam condenses into white smoke at the tailpipe.
  • Overheating issues - Leaking coolant can lead to overheating, as can compression gases entering the cooling system.
  • Bubbles in the radiator and coolant overflow tank - Exhaust gases can leak into the cooling system through a breach in the head gasket, causing visible bubbling.
  • Engine oil contamination - Coolant and engine oil can mix together, causing the oil to take on a milky color. The oil level may also rise.
  • Misdiagnosis as a cracked block - Some of the same symptoms are shared between a blown head gasket and a cracked block. Incorrectly assuming the issue is a cracked block is common.
  • Failed combustion leak test - A cylinder leak-down or compression test can help confirm if combustion gases are escaping past the head gasket. Most cylinders will show lower than-normal readings.

Diagnosing a Blown Head Gasket

Several tests can confirm a blown head gasket:

  • Block tester - Checks for exhaust gas bubbles in the coolant from a leak. The fluid changes color if combustion gases are present.
  • Cylinder leak-down test - Identifies compression loss from gasket leaks. Air pumped into a cylinder will escape quickly if the head gasket is blown.
  • Pressure testing - Pressurizes the cooling system to check for external leaks. Air bubbles in the radiator indicate a breach.
  • Compression test - Measures each cylinder's compression to find anomalies. Variances point to a gasket leak.
  • Scope inspection - A borescope can visually inspect cylinders and head gasket sealing surfaces for coolant leaks.
  • Oil analysis - Checks for coolant contamination in the engine oil. Milky oil indicates a gasket breach.
  • Spark plugs - Removed spark plugs can show white deposits if coolant is leaking into the combustion chambers.

What Causes a Blown Head Gasket?

There are a few primary causes of a blown head gasket:

  • Overheating - Extreme engine temperatures can warp and damage the head gasket. Running hot lowers the clamping force on the gasket.
  • Improper torquing - Incorrect tightening or loose head bolts reduces sealing pressure on the gasket over time.
  • Warping or damage - Physical warping of the engine block or cylinder head surfaces prevents a tight seal.
  • Age and wear - Head gaskets naturally deteriorate after years of thermal cycling and stress. Higher mileage engines are susceptible.
  • Mechanical issues - Damaged head bolts, cracked heads, dirty cooling system, and incorrect coolant all increase the chances of failure.

What is an Engine Block?

The engine block is the large metal structure that forms the main body of the engine. It houses critical components like the crankshaft, pistons, cylinders, camshaft, coolant passages, and oil galleries. Engine blocks are cast from durable iron alloys and machined to precise tolerances.

But with enough stress, an engine block can develop cracks that require extensive repairs.

Common Signs of a Cracked Block

A cracked or damaged engine block will show some of these key indicators:

  • Visible cracks - Carefully inspect the block exterior and cylinder walls for external cracks. Also check for water inside the oil, which can signify an internal breach.
  • Overheating - Coolant leaks from a crack reduce cooling system integrity. This causes rapid overheating.
  • White exhaust smoke - Just like with a blown head gasket, coolant can leak into cylinders and get burned in the combustion process as white smoke.
  • Coolant leaks - Cracks above the coolant line will leak coolant externally. Watch for puddles under the vehicle and low coolant levels.
  • Oil in the coolant - If the crack intersects with oil galleries, it can cause oil to seep into the cooling passages and contaminate the antifreeze.
  • Knocking or ticking noises - Deep cracks in the cylinder walls or crank journals can produce noisy mechanical sounds.
  • Failed cylinder tests - As with blown head gaskets, cylinder leak-down or compression tests may indicate gases escaping through a crack.
  • Sudden loss of performance - Large cracks that allow high pressures to escape from the cylinders will cause immediate power loss. The engine may not even start.

Diagnosing a Cracked Block

Some useful diagnostic tests include:

  • Visible inspection - Look for obvious external cracks, especially around high-load areas. Also, check the head mating surface.
  • Pressure testing - Use a pressure tester on the coolant system to identify external leaks.
  • Ultrasound - Transducers can detect internal cracking not visible from outside.
  • Metal analysis - Check oil and coolant samples for traces of aluminum or iron.
  • Cylinder leak down test - Verify compression loss from suspected cylinder wall cracks.
  • Borescope - Insert a camera into the cylinders to visually inspect for cracks.
  • Crankshaft rotation - Check pistons for uneven height, indicating a bent connecting rod.

What Commonly Causes Cracked Blocks?

  • Overheating - Prolonged exposure to extreme heat leads to thermal expansion stress and cracking. It also warps sealing surfaces like the head.
  • Improper maintenance - Lack of cooling system service, low coolant levels, and old coolant increase the chances of overheating and cracks.
  • Damage - Physical impacts to the block exterior from debris or accidents can produce hairline cracks.
  • Wear and fatigue - High-mileage engines experience considerable stresses over time which eventually take a toll on the block's structural integrity.
  • Manufacturer defects - Improper casting, weak metal alloys, and undetected porosities or voids in the new block may lead to premature cracking.
  • Modifications - Altering the performance with forced induction or high compression ratios adds more stress to stock engine blocks.

Key Differences Between a Blown Head Gasket vs Cracked Block

While blown head gaskets and cracked blocks share some similar symptoms, understanding how they vary is vital for diagnosing the underlying problem accurately:

  • Location of the leak - Head gaskets seal the head to the block. Cracks can occur anywhere in the block itself.
  • Visible evidence - Cracks may be visible externally. Blown head gaskets normally cannot be seen without disassembly.
  • Overheating patterns - Cracks tend to cause sudden overheating. Blown gaskets can slowly leak combustion gases into the cooling system over time, gradually raising temperatures.
  • Oil contamination - A blown gasket usually allows coolant to enter the oil. Cracked blocks can force oil into the cooling system.
  • Exhaust smoke - White exhaust smoke immediately points to coolant entering the combustion chambers. A cracked block will only produce smoke once enough coolant leaks in.
  • Loss of performance - Cracks directly reduce cylinder integrity and power. Blown gaskets have less immediate effects on performance.
  • Noise and vibration - Bad cylinder sealing from cracks transmits more noise and vibration through the block. Blown gaskets don't necessarily increase mechanical sounds.
  • Repairability - Replacing a blown gasket is inexpensive. Cracked blocks require incredibly expensive and complex repairs or a full engine replacement.

Blown Head Gasket Cracked Engine Block
Visible damage No external cracks Cracks visible on block exterior
Leak color Discolored coolant Clean, uncontaminated coolant
Overheating Moderate Severe
Noises Internal noises from engine parts Knocking from crankshaft/bearings
Driving Short distances possible Unsafe to drive at all
Repairability Head gasket replaced Block requires replacement/rebuild
Cost $1,000-$2,000 $4,000-$10,000+

Detecting the Difference

Accurately diagnosing a blown head gasket versus a cracked block is challenging but absolutely essential. Here are some tips:

  • Carefully inspect the block exterior for visible cracks or water infiltration. Also, check for bubbles in the radiator that point to exhaust gas entry.
  • Look for milky oil and white exhaust smoke as telltale signs of coolant burning in the combustion chambers.
  • Use a cylinder leak-down or compression test. Check if readings are below specs or uneven between cylinders.
  • Monitor the temperature gauge after warmup for sudden overheating pointing to loss of coolant and system integrity.
  • Listen closely for any unusual mechanical noises like knocking or ticking that could indicate a cracked block.
  • Consider using a combustible gas detector through the radiator cap opening to check for exhaust gases entering the cooling system.
  • Assess driving characteristics - severe power loss or misfires can signify greater cylinder damage from a crack versus just a head gasket failure.

Getting an accurate professional diagnosis is always recommended before committing to extensive repairs. Advanced testing such as pressure testing the cooling system, using a borescope, and engaging in oil analysis may be required to conclusively identify the root issue.

Repair Options

Once properly diagnosed, here are typical repair options:

Blown Head Gasket:

  • Replacing the damaged head gasket - This is the most common fix. The old gasket is removed and a new multi-layer steel or composite gasket is installed with fresh head bolts torqued to specifications.
  • Checking the head and block for warpage - Machining may be required if sealing surfaces are distorted.
  • Upgrading to a more durable performance gasket - These are more resistant to failure from high stresses.

Cracked Block:

  • Engine swap - The typical solution is to replace the entire damaged engine with a low-mileage used or remanufactured unit. This gets very expensive.
  • Welding repairs - Extremely limited cracks may be welded shut, but success rates are low due to the stresses involved. The repair may not hold for long.
  • Block repairs - Specialty shops can reinforce certain cracks with chemical sealing processes or metal stitches. These repairs are also prone to failure later on.
  • Engine rebuild - The block must be fully disassembled and inspected. Cracked areas get machined out and sleeved with new cylinder wall inserts. Only worthwhile on rare, high-value vehicles.

As you can see, a cracked block is far more severe than a blown head gasket. Being able to distinguish between the two and make the right repair choice is critical for any vehicle owner. Pay close attention to the unique symptoms of each failure and thoroughly diagnose the true underlying cause before making repairs.

Preventing Blown Gaskets and Cracked Blocks

Regular maintenance goes a long way toward preventing these major engine repairs:

  • Frequently check engine coolant levels and use the recommended coolant mix. Keep the cooling system clean.
  • Watch for overheating warning signs like high-temperature gauge readings. Shut off the engine immediately if overheating occurs.
  • Have the cooling system professionally flushed per the maintenance schedule.
  • Keep the oil changed regularly and use the manufacturer's recommended weight.
  • Be aware of engine noises like ticking or knocking as they can indicate underlying issues.
  • Fix minor problems early before they cascade into major damage.

Summary

  • Head gaskets seal the cylinders, while the engine block provides structural integrity. Both components endure extreme stresses when driving.
  • Blown head gaskets cause overheating, smoke, coolant leaks, oil contamination, and power loss. They can be replaced by removing the cylinder head.
  • Cracked blocks leak coolant, overheat severely, and can mix oil with antifreeze. Visible fractures, noises, and metal traces help diagnose cracks.
  • Preventative maintenance is key, but if you suspect an issue, act quickly to diagnose and fix it. Allowing either problem to continue unchecked leads to very costly repairs.

FAQ: Difference Between Blown Head Gasket vs Cracked Engine Block

What are the most common causes of a blown head gasket?

The most common causes are overheating, improper installation, worn-out gaskets, warping of the block or head, and general engine wear. Extreme mechanical stress from modified engines can also result in head gasket failure.

How can you tell if your head gasket is blown?

The top signs are white exhaust smoke, engine overheating, bubbles in the radiator/overflow tank, milky oil, failed cylinder tests, and a noticeable loss of coolant/oil mixing together. Be on the lookout for these symptoms.

What is the average cost to replace a blown head gasket?

Repair costs typically range from $1000 to $2000 depending on the vehicle, with luxury and high-performance models on the more expensive end. The parts themselves are inexpensive, but labor hours are extensive.

Can you drive with a blown head gasket?

It's not recommended to continue driving once the head gasket has failed. Combustion gases leaking into the coolant can lead to overheating and severe engine damage. The sooner it's repaired the better.

What happens if you don't fix a cracked engine block?

If left unaddressed, cracks in the engine block will rapidly lead to complete engine failure. Oil and coolant will continue to leak out, the vehicle will quickly overheat, and the block itself can fracture apart internally causing catastrophic mechanical damage.
